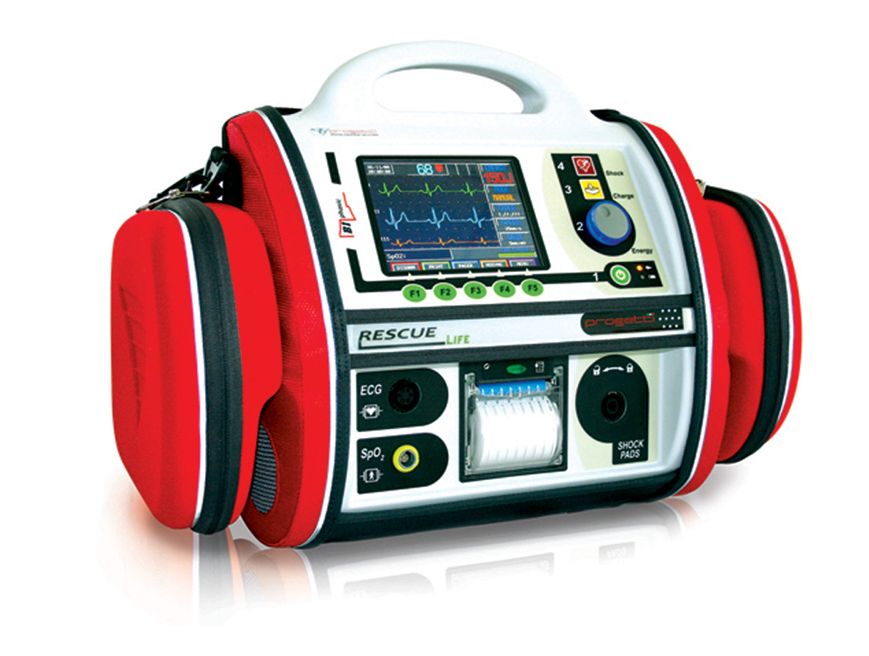

Technical Specifications

Display:
• High contrast TFT colour LCD 5.7" (320x240 pixel)
• ECG through the discharge paddles (1 trace) or through 5, 10 leads patient cable for 6, or 12 traces and SpO2 value
• Automatic change over when plugging the patient cable
• Filters: 50/60 Hz, base line, EMG
• Heart rate indicator
ECG monitoring:
• Bandwidth: 0.5 to 120 Hz (-3db) with filters off ECG trace
Parameters:
• Speed 5, 10, 25, 50 mm/sec.
• Gain 5, 10, 20 mm/mV with patient cable; auto with paddles
• HR digital readout on the display from 20 to 300 bpm (± 2%)
• Alarm: HR max settable 250 bpm, HR min settable 20 bpm
Printer:
• Auto printing mode
• Integrated thermal printer for ECG traces and events documentation hardcopy including SpO2 in %
• Paper speed 5, 10 and 25 mm/sec.
• Paper width: 58 mm
Safety:
• Two hand safety shock release
• Ecg input insulation CF class
• Internal discharge after 30 sec. of standby after charge
Power supply:
• Internal Ni-Mh high capacity batteries (charging time 95%: 2 hours)
• Universal mains adaptor charger 110/230 VAC, 50/60 Hz
